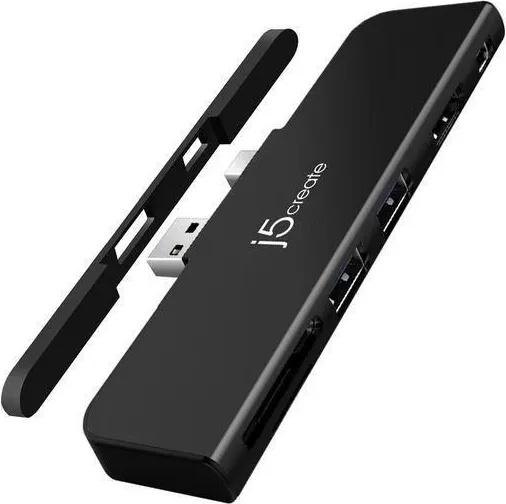

The JDD320 is designed to keep all the ports on one side for easy cable management. It supports up to 4K resolutions @ 30 Hz via HDMI and up to 4K @ 60 Hz via mini DisplayPort (only one output is supported at once). The USB Type-A 3.0 ports allow you to connect USB peripherals such as a storage device, keyboard, mouse, etc. The removable silicone pad provides a firm grip and protects against accidental disconnections and internal damage.

audio supported Yes
host connector:
1 - mini DisplayPort Male
1 - USB Type-A male
network interface N/A
ports 2 - USB 3.1 Gen 2 Type-A
1 - SD & microSD card reader/writer
1 - 4K HDMI
1 - 4K mini DisplayPort power source Bus-powered
video output:
1 - HDMI Female
1 - mini DisplayPort Female
audio channel 2.1 via HDMI or mini DisplayPort
displays supported 1 (HDMI or mini DisplayPort)
max data transfer rate 5 Gbps
max display refresh rate:
HDMI @ 30 Hz
mini DisplayPort @ 60 Hz
max display resolution 3840 x 2160
power consumption ≤ 400 mA
power delivery N/A
color Black or Silver
enclosure type Aluminum
operating humidity < 85% non-condensing
operating temperature 32 to 118°F (0 to 48°C)
product depth 0.35 in. (8.89 mm)
product height 1.5 in. (116.84 mm)
product weight 1.75 oz (49.5g)
product width 4.52 in. (36.32 mm)
storage humidity < 85% non-condensing
storage temperature 14 to 149°F (-10 to 65°C)



Продукт известен още и като JDD 320
