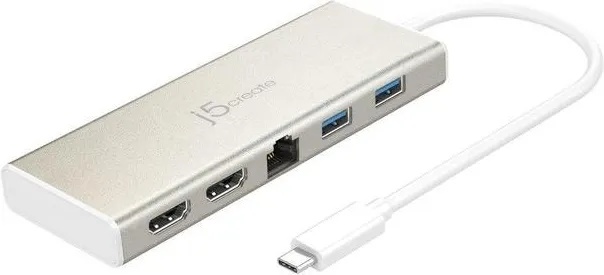

j5Create JCD381 USB TYPE-C DUAL HDMI MINI DOCK
Dual HDMI Mini Dock USB Type-C осигурява допълнително свързване от вашия компютър с по-бърза скорост на трансфер от 5 Gbps. Тази преносима докинг станция ви позволява да добавите 2 x USB-A, 2 x HDMI (един 4K и един 2K), Gigabit LAN през вашия USB порт. При свързване към източник на захранване, омже да използвате порта USB-C да зареждате своя преносим компютър или смартфон.

The USB Type-C Dual HDMI Mini Dock provides extra connectivity from your computer with 5 Gbps faster transfer speed. This portable docking station allows you to add additional USB computer peripherals, two HDMI monitors (one 4K and one 2K), or a Gigabit LAN through your USB port. When connected with a power source, the USB Type-C input charging port allows you to continue charging your notebook or smartphone.

USB Type‐C is the new standard for connecting PCs and laptops and will eventually replace all current USB cables and connectors. This new USB standard can be found on laptops, phones, tablets, etc. The USB Type-C has a slim and reversible design, so there is no wrong way to plug it in. USB Type-C offers greater power delivery and faster data transfer rates of up to 5 Gbps.

PRODUCT SPECIFICATIONS

Interface
Host Interface USB 3.1 Gen 1 Type-C Male
Video Interface HDMI Type-A Female connector x 2
Ethernet Port Gigabit Ethernet RJ-45 Female connector
USB Type-A Port USB 3.0 Female connector x 2
USB Type-C Port USB Type-C Power In x 1 port (Supports upstream charging and Power Delivery 2.0)

Power
Power Mode Bus-powered or self-powered

Functions
Display Max Resolution 4K @ 30 Hz / 1080p @ 60 Hz
Ethernet Transfer Rate:
1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex)
IEEE:
IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x
Modes:
Supports Wake on LAN function, suspend mode and remote wakeup via link-change, magic packet, or Microsoft wakeup frame
Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
Supports Jumbo Frame
Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload

Physical Specifications
Dimensions Main body:
5.1 (W) x 2.1 (H) x 0.6 (D) in.
130 (W) x 54 (H) x 15 (D) mm
Cable length: 7.8 in.
Cable length: 20 cm
Weight Approximately:
0.25 lbs/ 113.5 g

Aspect Ratio Resolution Color Depth
Wide Screen Display
16:9 3840 x 2160 32 bits
8:5 2560 x 1600 32 bits
16:9 2048 x 1152 32 bits
16:10 1920 x 1200 32 bits
16:9 1920 x 1080 32 bits
16:10 1680 x 1050 32 bits
16:9 1600 x 900 32 bits
16:10 1440 x 900 32 bits
16:9 1600 x 900 32 bits
16:10 1440 x 900 32 bits
16:9 1366 x 768 32 bits
16:10 1360 x 768 32 bits
16:9 1280 x 800 32 bits
16:10 1280 x 768 32 bits
16:9 1280 x 720 32 bits

Standard Display
4:3 1600 x 1200 32 bits
4:3 1400 x 1050 32 bits
5:4 1280 x 1024 32 bits
4:3 1280 x 960 32 bits
4:3 1152 x 864 32 bits
4:3 1024 x 768 32 bits
4:3 800 x 600 32 bits
4:3 640 x 480 32 bits

System Requirements

Mac OS X 10.8 or later
Available USB 3.0/2.0 port (USB 3.0 recommended)
Available USB Type-C port (USB 3.1 is recommended)
Available USB power delivery over USB Type-C to support upstream charging
Microsoft Windows 10/ 8.1/ 8/ 7 (32-bit or 64-bit) compatible
Office applications / Web browsers
CPU: Intel Core i3 Dual Core 2.8 GHz
RAM: 2 GB memory or higher
One 2K (2048 x 1152 @ 60 Hz) full-screen video playback
CPU: Intel Core i5 Quad Core
RAM: 4 GB memory or higher
One 4K Ultra HD or two 2K (2048 x 1152 @ 60 Hz) full-screen video playback
CPU: Intel Core i7 Quad Core
RAM: 8 GB memory or higher
Graphics card: Intel HD Graphics 4000/ ATI HD 7xxx/ NVIDIA 5XXM or higher

Note for Video Player:
Windows 8.1/8/7 users: Windows Media Player is recommended for video playback Windows 10 users: Movies & TV is recommended for video playback

Продукт известен още и като JCD 381 N, JCD381N, JCD381 N, JCD 381-N
