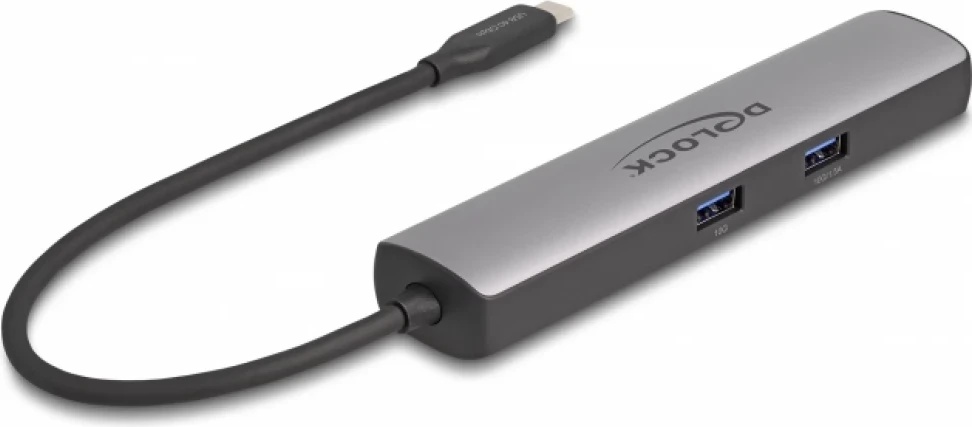

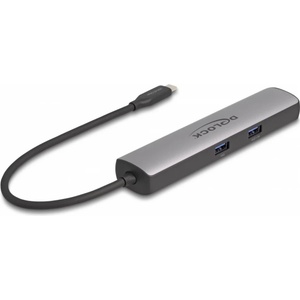

This docking station by Delock can be connected to a computer with a USB-C DP Alt Mode or Thunderbolt 3 or Thunderbolt 4 port and provides a variety of interfaces. A monitor can be operated at the HDMI output port by a maximum resolution up to 8K Ultra HD (7680 x 4320 @ 60 Hz). Two built-in USB Type-A and one USB-C port allow the use of peripherals.
 Integrated 10/100/1000/2500 Mbps LAN interfaceIn addition, the docking station with integrated RJ45 2.5 Gigabit LAN connection expands a PC or laptop by a network interface.
 USB Power Delivery (USB PD 3.0) support up to 85 wattThe docking station has a USB Type-C Power Delivery port . If this port is connected to the power supply of the laptop or tablet, the host device is charged with up to 85 watts during operation.

Small sturdy helper
Due to its small dimensions and its sturdy housing , this Delock docking station is particularly suitable for travelling. It can simply be packed into the bag together with the laptop or tablet and used as needed.   Technical details

• Connectors:
  2 x USB 10 Gbps Type-A female
  1 x USB 10 Gbps USB Type-C female
  1 x HDMI female
  1 x 2.5 Gigabit LAN RJ45 jack
  1 x USB Type-C PD female (power supply)
• Maximum resolution (depending on the system and the connected hardware):
  with DSC: 7680 x 4320 @ 60 Hz
  without DSC: 7680 x 4320 @ 30 Hz
• Transmission of audio and video signals
• Supports HDCP 1.4 and 2.2
• Supports HDR
• Input power PD port: 100 W, 15 W are used for the docking station
• Output power for host: max. 85 W
• Metal housing
• Cable length without connectors: ca. 25 cm
• Colour: grey
• Dimensions (LxWxH): ca. 142 x 30 x 18 mm


System requirements

• Linux Kernel 5.15 or above
• Mac OS 12.4 or above
• Windows 8.1/8.1-64/10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• Surface Pro 7
• Device with a free USB Type-C port and DisplayPort alternate mode or with a free Thunderbolt 3 or Thunderbolt 4 port
